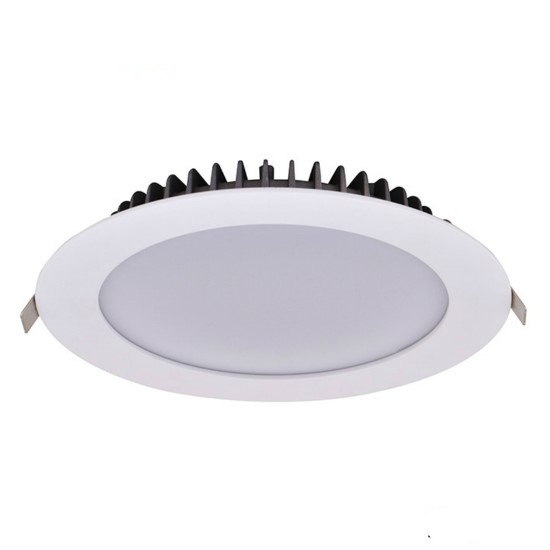

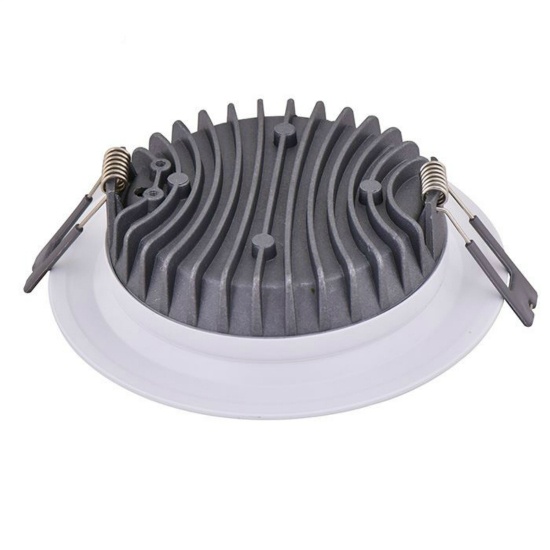

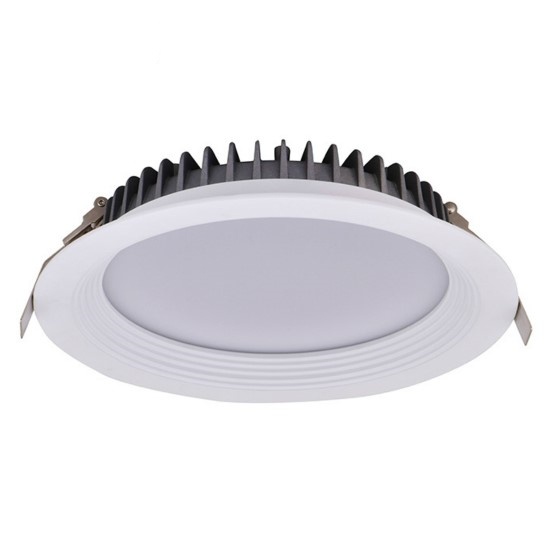

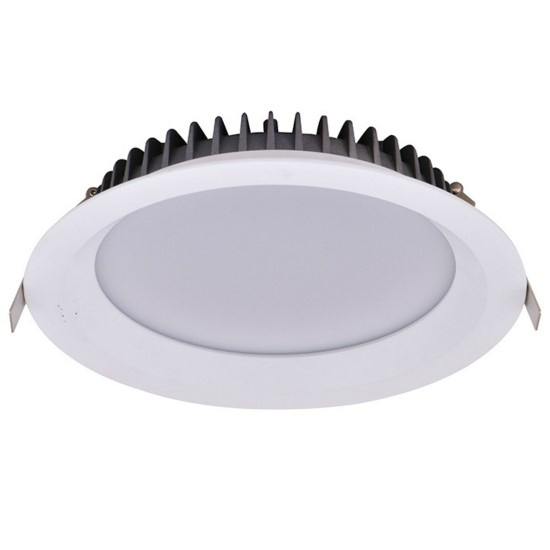

Apollo Series 20W LED Downlight, Down Light, Downlighter
Key Features
♦ Patent Product, Excellent heat dissipation
♦ Using high quality PHILIPS LumiLEDs SMD2835 LEDs as light source; led panel light ceiling
♦ No Mercury, no UV or IR radiation, EMI free, completely green and environmentally friendly;
♦ Instant start, gentle light, no shadow, no flickering, eye-protective;
♦ High light efficiency, low power consumption, effectively saving energy cost;
♦ High power factor, completely conform to the requirements of state power grid;
♦ High CRI, vivid color rendering;
♦ Energy efficient, 70% energy saving compared with traditional halogen downlight;
♦ Long life span, more than 50,000 hours, greatly reduce the cost of light source replacement and maintenance;
♦ Good adaptability, easy installation, can replace traditional grille lights completely. led pan
Datasheet for Apollo Series 20W LED downlight, down light, downlighter
| Material |
AL Housing + Glass Diffuser |
| Dimension |
Dia.188mm x H36mm |
| Cut-out Size |
Dia.160-175mm |
| Light Source |
PHILIPS LumiLEDs 2835SMD LED |
| LED Chip QTY |
120 units |
| Colour Temp. |
Warm White, Neutral White, Daylight White, Cold White |
| Kelvin |
3000K/4000K/5000K/6500K |
| CRI |
80Ra |
| Luminous Efficiency |
110 lm/W |
| Lumen Output |
2000-2200lm |
| Beam Angle |
120° |
| Wattage |
20W |
| Voltage |
AC220-240V 50/60Hz |
| Dimming |
NON, DALI, TRIAC, 0-10V |
| Driver Brand |
LiFud/BOKE/PHILIPS/OSRAM/Tridonic |
| Protection Grade |
IP20 |
| Power Factor |
0.9 |
| Certificate |
TUV/CE/SAA/RoHS |
| Warranty |
5 years |
Trims for 6 inch 20W LED downlight, down light, downlighter

Application: airport, office building, hotel, hospital, school, shopping mall etc.
