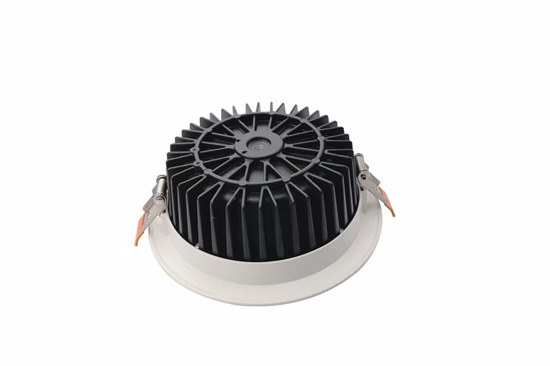

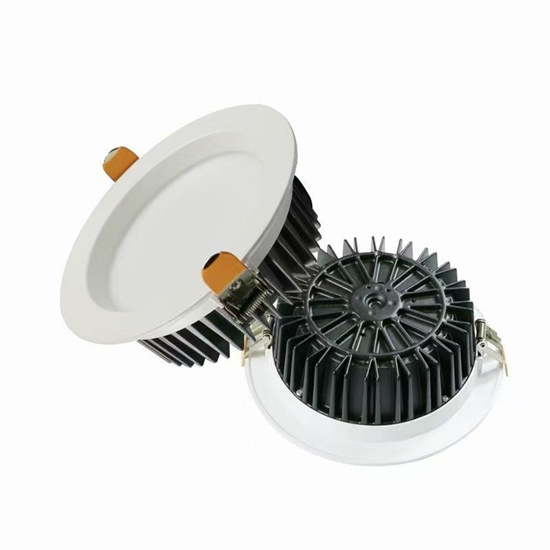

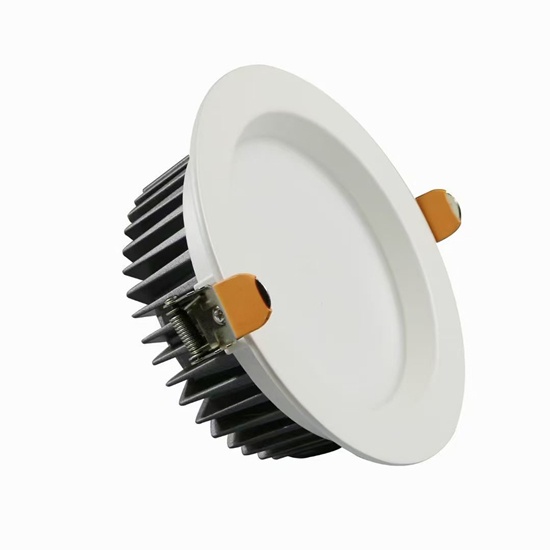

3 inch 10W CROWN LED Downlight, Downlighter, Down Light
Key Features
♦ Patent Product, Excellent heat dissipation.
♦ Using high quality brand PHILIPS LumiLEDs 2835SMD as light source.led pael light ceiling
♦ No Mercury, no UV or IR radiation, EMI free, completely green and environmentally friendly.
♦ Instant start, gentle light, no shadow, non-flicker, eye-protective.
♦ High light efficiency, low power consumption, effectively saving energy cost.
♦ High power factor, completely conform to the requirements of state power grid.
♦ High CRI, ultra-high colour rendering.
♦ Energy efficient, 70% energy saving compared with traditional halogen downlight.
♦ Longer lifespan, more than 50,000 hours, greatly reduce the cost of light source replacement and maintenance.
♦ Good adaptability, easy installation, can replace traditional halogen lights completely. led pa

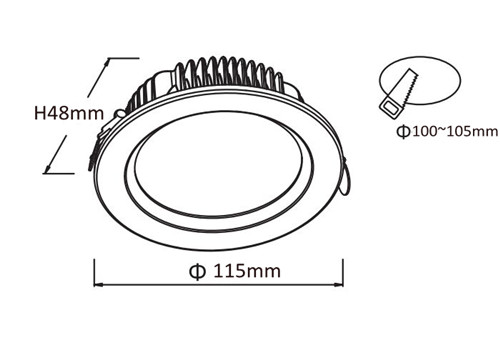

Dimensions
Datasheet for 3 inch 10W CROWN LED Downlight, Downlighter, Down Light
| Material |
AL Housing + Acrylic Diffuser |
| Dimension |
Dia.115mm x H48mm |
| Cut-out Size |
Dia.100mm - 105mm |
| LED Chip Brand |
PHILIPS LumiLEDs |
| SMD Size |
2.8*3.5mm -SMD2835 |
| Colour Temp. |
Warm White, Neutral White, Daylight White, Cold White |
| Kelvin |
2700K/3000K/4000K/5000K/6000K/6500K |
| CRI |
80Ra or 90Ra |
| Luminous Efficiency |
80LM/W |
| Lumen Output |
800-850lm |
| Beam Angle |
120° |
| Wattage |
10W |
| Voltage |
AC220-240V 50/60Hz |
| Dimming |
NON, DALI, TRIAC, 0-10V |
| Driver Brand |
LiFud/Eaglerise/BOKE/OSRAM/PHILIPS/Tridonic |
| Protection Grade |
IP20 |
| Power Factor |
0.95 |
| Certificate |
TUV/CE/SAA/RoHS |
| Warranty |
5 years |

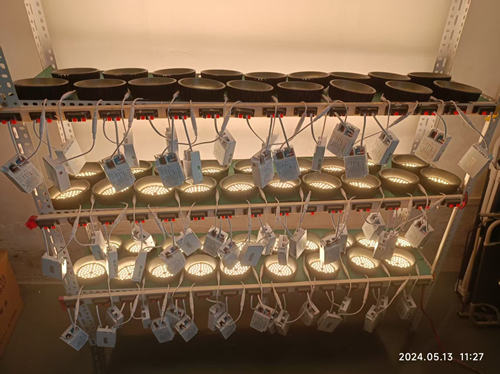

48 hours aging test

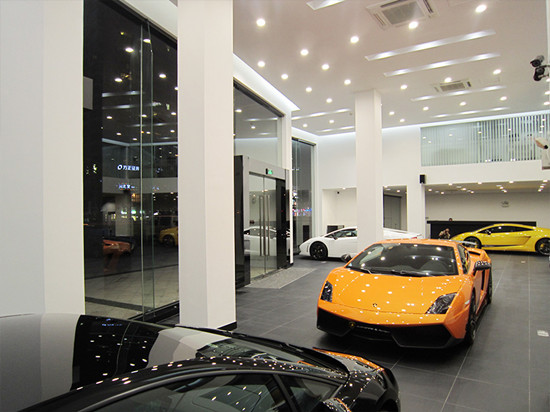

Application: airport, office building, hotel, hospital, school, shopping mall etc.
