Products > LED Light Sheet Panel > > Flexible LED Light Sheet

Product name : Flexible LED Light Sheet

Product No. : KLM-PLF

[Next Product]→

Online Inquiry Email Us

Details:

KINGLUMEN LED light sheet panel is an ultra-thin, versatile and energy efficient backlighting unit, providing consistently bright, uniform illumination. We have more than 12 years experience in designing, specifying and manufacturing ultra-thin LED light sheet.

Every sheet is unique. By using an advanced algorithm to program the V-cutting process, every panel has a custom light-guiding pattern, ensuring efficient light management, completely even illumination and minimum energy use. The engraved acrylic sheets are lit by LEDs from the edge with LEDs on one, two or four edges depending on the panel size and the brightness needed.

LED Light Sheet design never stands still, there are always new innovations and markets to adapt to. Our new LED light panel range provides a frame type for every application – each one optimised for performance and reliability. There are specific frame designs for RGBW and dynamic white and a new extra robust option for tough environments.

With the development of a 3mm thick and flexible LED Light Sheet created a revolution in the field of LED lighting technology.

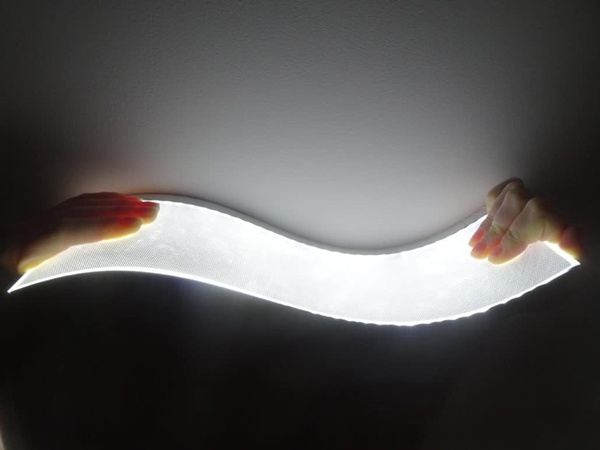

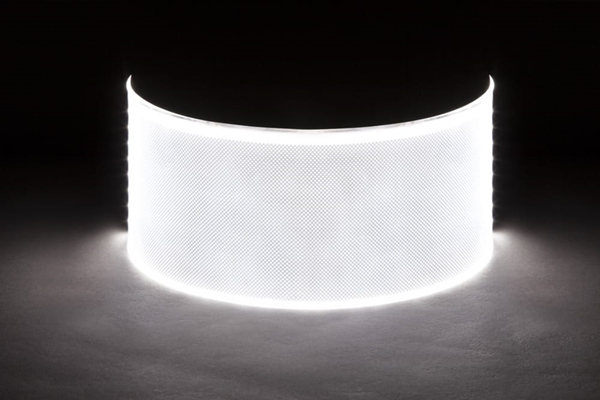

Our flexible LED light sheet offers the benefits of OLED technology, giving better illumination at a fraction of the cost. It is in fact the most cost-effective LED sheet lighting solution on the market. It can be bent to shape by hand – concave/convex or into different directions (S-Shapes). Being that flexible it offers unique lighting solutions; for example, lighting around a product, an object or a column and constructing curved or flexible LED light panels.

The flexible LED Light Sheet is available cut to any shape or size up to 2400mm x 600mm with any colour temperature and single or double-sided. Several sheets can be joined to illuminate larger areas.

Call our technical service team to find out what else is possible.

Sizes up to: 2.4m x 1.2m
Light Source: LED
CCT / Colour: 2200K to 10000K / Single Colour / Colour Changing (RGB/W) / Tuneable White
Warranty: 3 Years
Voltage: 12V or 24V
Light Guide Plate(LGP): Acrylic (PMMA)

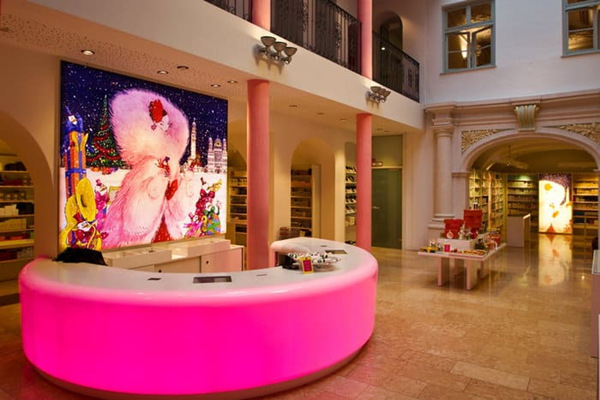

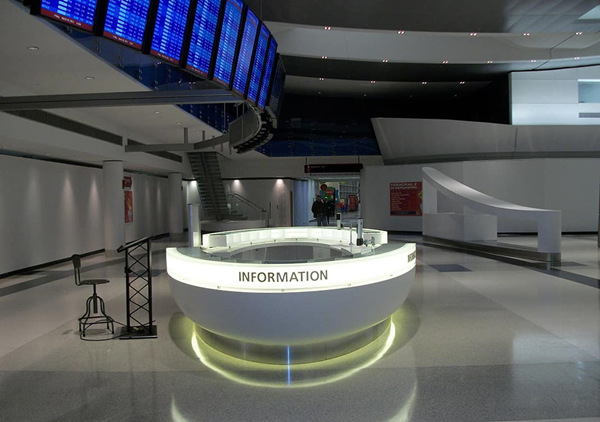

Architectural lighting, kitchen splashbacks, lift lighting, shop-lighting, POS, customised lightboxes, backlighting art and , stained glass, furniture lighting, natural stone illumination, office reception desks, luminaires, lighting installations, feature walls, etc

Why buy LED light sheet panel from KINGLUMEN?

1. High quality. use good quality raw material, includes pure aluminum frame, acrylic light guide plate, brand SAMSUNG SMD2835 LED and MEAN WELL LED driver to ensure good quality and longer lifespan.

2. Fast delivery time. 3-5 days(sample order); 5-8 days(trial order); 12-15 working days(bulk order).

3. Nice after-sales service.

4. Warranty period: 5 years.
