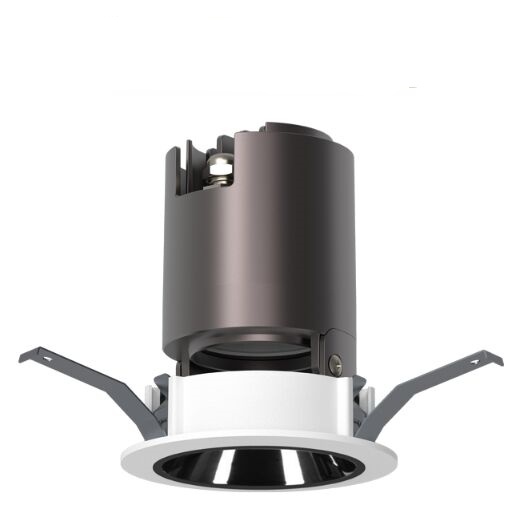

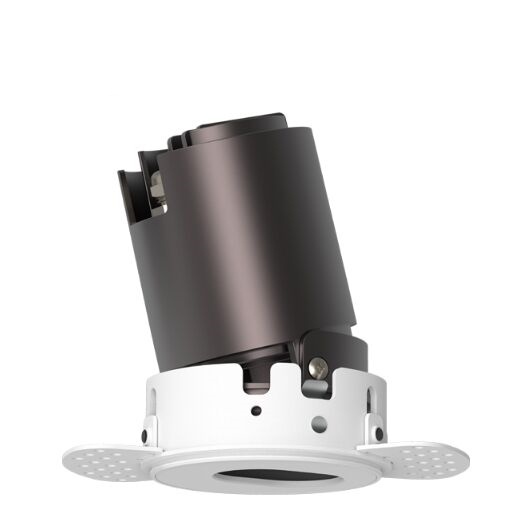

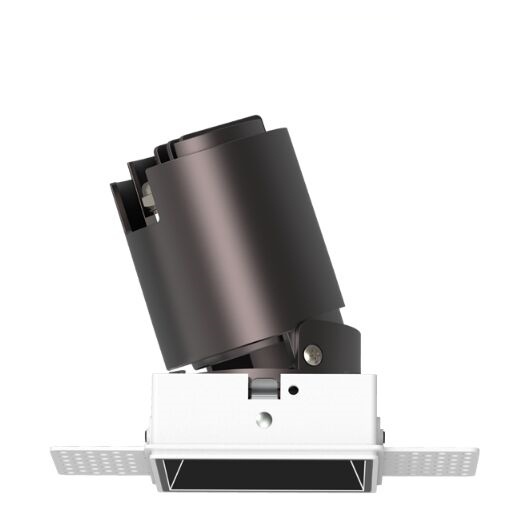

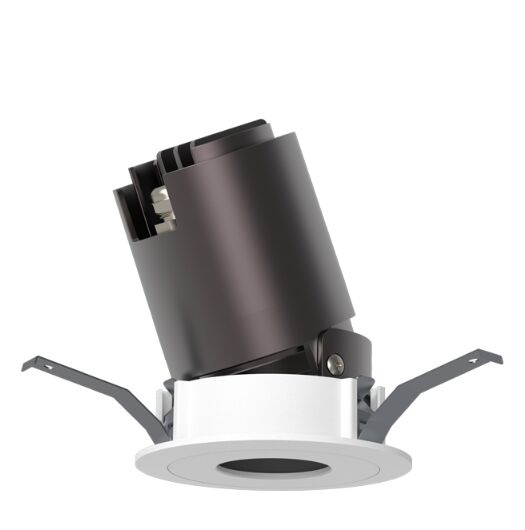

4 inch 125mm cutout hotel LED Spot Light

KINGLUMEN, as a professional supplier of commercial LED lighting, specialized in R & D, manufacture LED downlight for many years, also optical research with rich experience, a relieable partner for brand of hotel lighting, commercial lighting suppliers.

Key Features
1. Privately-moulding, Patent Product
2. Brand COB LED Chip
3. Multi Trims optional
4. Anti-Glare, UGR<19
5. High CRI

Product Show



Datasheet

Material	Aluminum Alloy and Acrylic Lens
Dimension	Dia.140mm x H151mm
Cut-out Size	Dia.125mm
COB Chip Brand	Bridgelux, CREE or CITIZEN
COB Size	14*14mm -11mm emitting area
Colour Temp.	Warm White, Neutral White, Daylight White, Cold White
Kelvin	2700K/3000K/4000K
CRI	80Ra or 90Ra
Luminous Efficiency	90LM/W
Lumen Output	2675lm
Beam Angle	15°/24°/38°/60°
Wattage	30W
Voltage	AC220-240V 50/60Hz
Dimming	Non-dimmable / Triac dimmable / DALI dimming
Driver Brand	Tridonic/PHILIPS/BOKE/AIDIMMING
Protection Grade	IP20/IP44/IP54 Optional
Power Factor	0.95
Certificate	CE/RoHS
Warranty	5 years

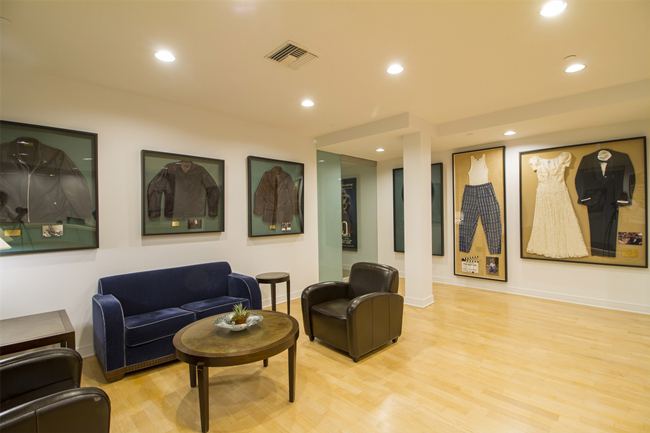

Application: airport, office building, hotel, hospital, school, shopping mall etc.
