Products > LED Track Light > KLM-TL-A > Anti-Glare LED Track Panel Light

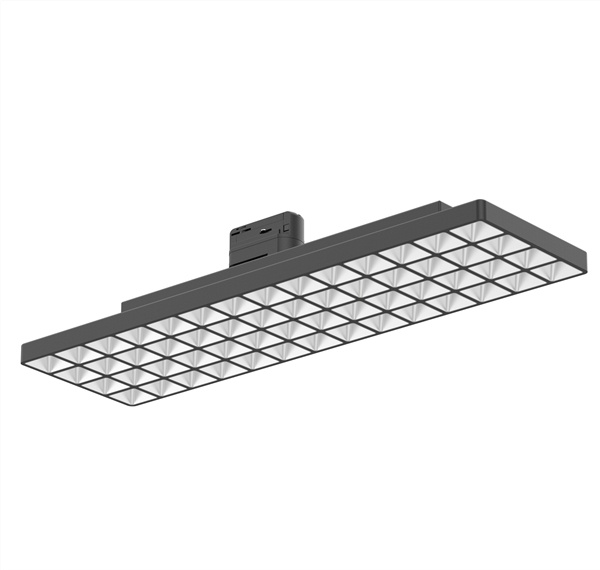

Product name : Anti-Glare LED Track Panel Light

Product No. : KLM-TL-A2

[Next Product]→

Online Inquiry Email Us

Details:

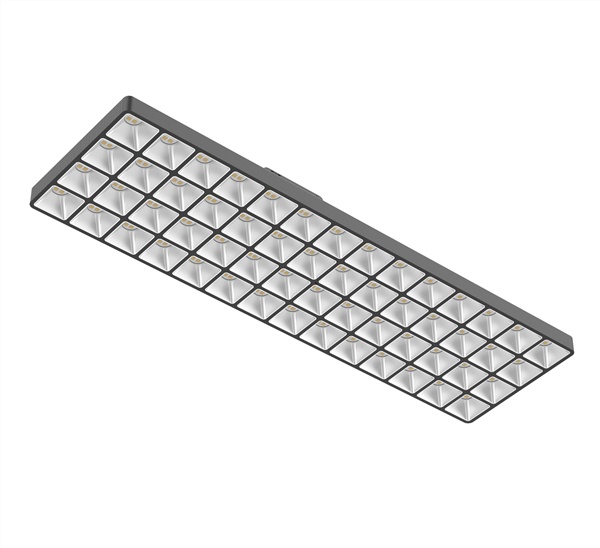

Anti-Glare LED Track Panel Light

By reducing the intensity of the light source itself and blocking out unwanted reflections, Anti-Glare light allows people to see things more clearly without hurting their eyes. It is perfect for those who do not get enough bright sunlight or spend plenty of time indoors.

High luminous intensity, up to 130LM/W
Adopt PMMA efficient lens, lower decay and high UV tolerance
Unique aluminum housing(6063-T5) with good heat dissipation
Aluminpcb(PCB) with high thermal conductivity and thermal resistance.
Widely used in shopping malls, supermarkets, warehouses and brand chain stores

UGR<19 is the best choice for working in office, like reading, writing and meeting.

Features

4 wire 3-phase track adapter
350° flexible horizaontal rotation
Beam angle: 60º/90º/DS20º (Double Asymmetric)
ON/OFF, DALI and 1-10V dimming driver for option
Wattage DIP-Switch: 68W can adjust 44W, 52W, 60W,68W

Universal track adapter, compatible with multiple European 3-circuit tracks

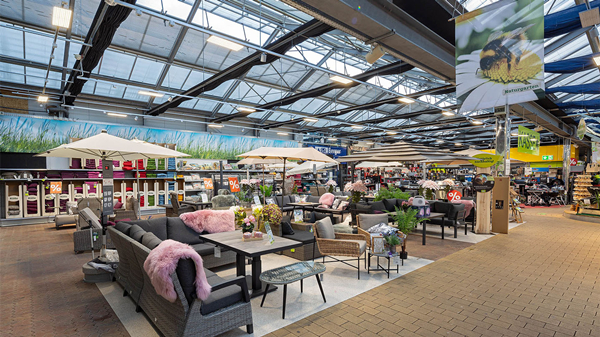

Alternatives Of Store Lighting
During deep concentration work on computer screen, people may feel dazzling or uncomfortable under traditional incandescent and halogen bulbs. By reducing the intensity of the light source itself and blocking out unwanted reflections, Anti-Glare light allows people to see things more clearly without hurting their eyes.

Secondary Optical Design For Eyes Protection
Adopt efficient lens and reflective design, balanced light with minimal glare and visually comfortable spaces would reduce visual fatigue.

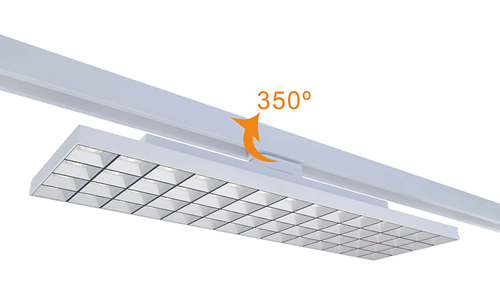

350° Horizontal Rotation

The track panel light can be rotated around 350 degrees, which allows the lighting to focus on the special areas. Such a flexible design will provide you with better customer experience.

Wattage Adjustable

The adjustable function can realize lighting control and scene setting. To some extent, it replaces the common dimmer system. There’s no need to add an extra dimmable driver. Which can greatly save your inventory space and meet different project requirements. Wattage dipswitch: 44/52/60/68W CRI:>80Ra/90Ra

Datasheet

Technical Parameters
Model	TL-A2-50W
Power	50W / 60W / 70W / 68WD
Luminous flux	6500lm(50W) / 7800lm(60W) / 9100lm(70W) 130lm/W
Dimension	L576*W166mm
Input Voltage	AC220-240V
LED Chip Brand	PHILIPS LumiLEDs or OSRAM
LED Type	SMD 3030/2835, CRI>80Ra, CRI>90Ra for Option
Surface Finish	Black / White
Track Adapter	4 Wires 3 Phase, Powergear Adapter/Global
Driver Brand	LiFud, PHILIPS, Tridonic, BOKE

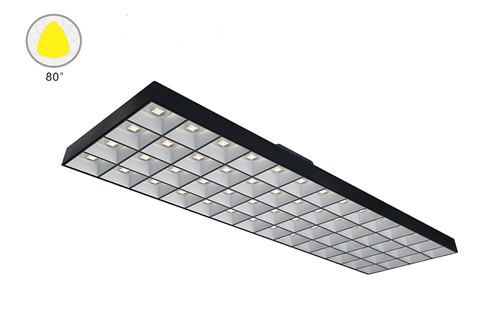

Beam Angle	80°
Material	6063 Aluminum housing + PMMA Lens Cover
UGR	<19
Lifespan	50000 hrs
Warranty Period	5 years

Application

Architectual lighting, commercial lighting etc
