Products > LED Track Light > KLM-TL-A > High Lumen LED Track Panel Light

Product name : High Lumen LED Track Panel Light

Product No. : KLM-TL-A1

←[Previous Product]

Online Inquiry Email Us

Details:

High Lumen LED Track Panel Light

KINGLUMEN as a professional supplier for LED track panel light in Shenzhen China. We have been dedicated to supplying track panel light our customers with high-performance & commercial lighting.

With decades of combined experience in the lighting industry, we own advanced manufacturing facilities and rich experience in commercial lighting projects.

Features

4 wire 3-phase track adapter
350° flexible horizaontal rotation
Beam angle: 60º/90º/DS20º (Double Asymmetric)
ON/OFF, DALI and 1-10V dimming driver for option
Wattage DIP-Switch: 68W can adjust 44W, 52W, 60W,68W

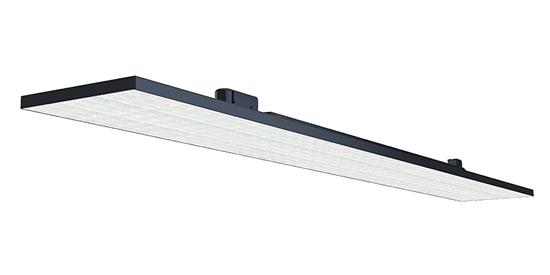

Extended LED Track Panel Light

Especially for some supermarkets, Compared with traditional grille panel light, track panel light supplies wider lighting distribution in the designated retail area. It can reach 1152mm in length and 188mm in width.

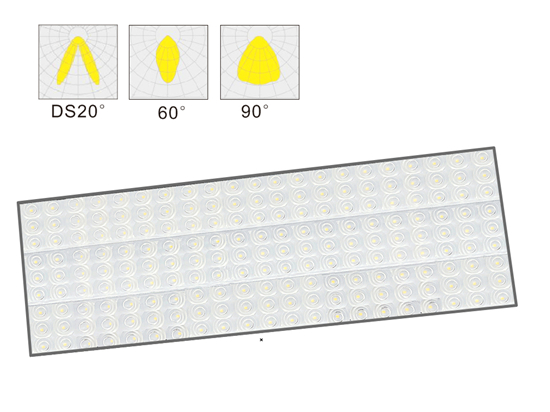

Innovative Optical Design
Select the appropriate beam angle based on the application scenario. Most commonly, you can choose 60°、 90 ° and DS20°.

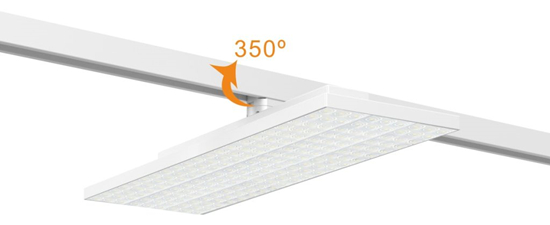

350° Horizontal Rotation

The track panel light can be rotated around 350 degrees, which allows the lighting to focus on the special areas. Such a flexible design will provide you with better customer experience.

Wattage Adjustable

The adjustable function can realize lighting control and scene setting. To some extent, it replaces the common dimmer system. There’s no need to add an extra dimmable driver. Which can greatly save your inventory space and meet different project requirements. Wattage dipswitch: 44/52/60/68W CRI:>80Ra/90Ra

Datasheet

Technical Parameters
Model	TL-A1-50W
Power	50W / 60W / 70W / 68WD
Luminous flux	8000lm(50W) / 9600lm(60W) / 11200lm(70W) 160lm/W
Dimension	L578*W188mm
Input Voltage	AC220-240V
LED Chip Brand	PHILIPS LumiLEDs or OSRAM
LED Type	SMD 3030/2835, CRI>80Ra, CRI>90Ra for Option
Surface Finish	Black / White
Track Adapter	4 Wires 3 Phase, Powergear Adapter
Driver Brand	LiFud, PHILIPS, Tridonic, BOKE
Beam angle	60°/90°/DS20°
Housing material	Aluminum 6063 + PMMA Lens Cover
Working Temperature	-20°C~+50°C
Lifespan	50000 hrs
Warranty Period	5 years

Application
Architectual lighting, commercial lighting etc
