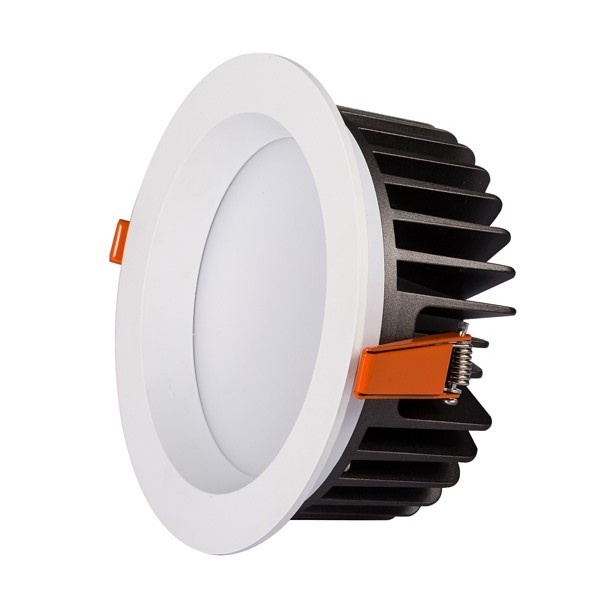

4 inch 20W OSRAM SMD LED Downlight
Key Features
♦ Patent Product, Excellent heat dissipation.
♦ Using high quality brand PHILIPS LumiLEDs 3030SMD as light source.led pael light ceiling
♦ No Mercury, no UV or IR radiation, EMI free, completely green and environmentally friendly.
♦ Instant start, gentle light, no shadow, non-flicker, eye-protective.
♦ High light efficiency, low power consumption, effectively saving energy cost.
♦ High power factor, completely conform to the requirements of state power grid.
♦ High CRI, vivid color rendering.
♦ Energy efficient, 70% energy saving compared with traditional halogen downlight.
♦ Longer lifespan, more than 50,000 hours, greatly reduce the cost of light source replacement and maintenance.
♦ Good adaptability, easy installation, can replace traditional grille lights completely. led pa
Datasheet for 4 inch 20W OSRAM SMD LED Downlight
| Material |
AL Housing + Acrylic Diffuser |
| Dimension |
Dia.145mm x H69mm |
| Cut-out Size |
Dia.125-130mm |
| LED Chip Brand |
PHILIPS LumiLEDs |
| SMD Size |
3.0*3.0mm -SMD3030 |
| Colour Temp. |
Warm White, Neutral White, Daylight White, Cold White |
| Kelvin |
2700K/3000K/4000K/5000K/6000K |
| CRI |
80Ra or 90Ra |
| Luminous Efficiency |
110LM/W |
| Lumen Output |
2000-2200lm |
| Beam Angle |
120° |
| Wattage |
20W |
| Voltage |
AC220-240V 50/60Hz |
| Dimming |
NON, DALI, TRIAC, 1-10V |
| Driver Brand |
BOKE/OSRAM/PHILIPS/Tridonic |
| Protection Grade |
IP20 |
| Power Factor |
0.95 |
| Certificate |
TUV/CE/SAA/RoHS |
| Warranty |
5 years |
48 hours aging test

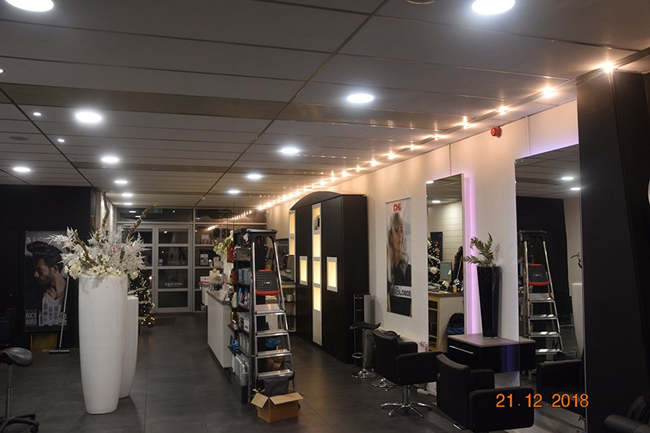

Application: airport, office building, hotel, hospital, school, shopping mall etc.
